10-32mm Single Wall Corrugated Pipe Extrusion Line/Production Line/Making Machine

FOB Reference Price:Get Latest Price
US $13,115-16,129 / Set | 1 Set/Sets single wall corrugaetd pipe extrusion line (Min. Order)
Supply Ability:
5 Set/Sets per Month single wall corrugaetd pipe extrusion line
Port:
Qingdao Port,China.
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Pipe
Plastic Processed:
PP/PE/PVC/PA/PB/EVA
Screw Design:
Single-screw
Automatic Grade:
Automatic
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Shengda
Model Number:
SJ-30/28,SJ-45/30,SJ-50/30,SJ-55/30,SJ-65/30,SJ-90/30
Voltage:
380V/3P/50Hz or customized
Power(W):
11KW 15KW 22KW 30KW 90KW
Dimension(L*W*H):
12m*1m*2m
Weight:
According to the actual condition
Certification:
CE BV
After-sales Service Provided:
Engineers available to service machinery overseas
Pipe diameter:
4-250mm
Line speed:
10-20m/min
Material of barral and screw:
38CrMoAlA
Capacity:
40-250kg/h
Quantity of mould block:
38-80 pairs
Material of mould block:
40Cr
Warranty:
12 months
Contact machine:
Siemens
Temperature controller:
Omron
Inverter:
ABB
Packaging & Delivery
Packaging Details
single wall corrugated pipe extrusion line Packaging Details:Pallet,the material of pallet is stainless steel pipe the surface of each part of machinery covered film together with one set of packing list.
Delivery Time
The whole line need 45-50 days after recevied the down payment



Company Information



CE



China Plastic Exhibition



Our company



We will supply our trust and profession to you with low and medium cost machine meanwhile gurantee the quality.



I could be sure of the reality of these pictures and videos of our company.frankly,we have the oversea experience for corrugated pipe line.



So if you trust me,just give me your credit and sincerity to acheive a long-term and win-win cooperation.Thanks!





Product Description







  For Electrical Conduit Single Wall Corrugated Pipe Line

We have many sets of corrugated pipe machine in our factory now can check.welcome you come and test our machine quality.



Application Of Single Wall Corrugated Pipes:

1.Building industry : electrical conduit & sanitary duct, PP-PE-PVC-PA


2.Automotive industry: Fuel line & wiring harness, PP-PA6-PA11-PA12


3.Medical industry : breathing tubes, LLDPE,EVA


4.Civil works industry : double wall cable conduit, HDPE


5.Agriculture: single and double wall drainage pipe, HDPE, PVC



Process Flow:

PP/PE/PVC/PA/PB/EVA material→Automatic loader →Electrical control system→Single screw extruder→Head die and mould →Mouth mould and core mould→Mould block→Forming machine→Winder

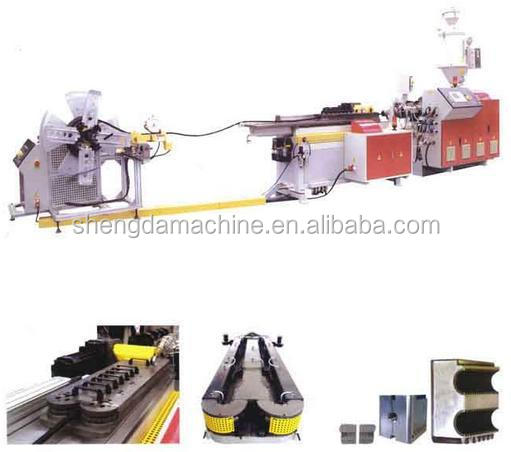

The Equipment List Of Single Wall Corrugated Pipe Extrusion Line:

(1) Automatic loader

(2) Electrical control system

(3) Single screw extruder

(4) Head die and mould

(5) Mouth mould and core mould

(6) Mould block

(7) Forming machine

(8) Winder



Main Electricity Brand:

Main Motor: Famous brand in china or SIEMENS

Frequency control: ABB

Contactor: SIEMENS

Temperature controler: OMRON



Technical Parameter:

Pipe diameter4-12mm10-32mm10-32mm25-65mm50-110mm
ExtruderSJ-30/28SJ-45/30SJ-50/30SJ-65/30SJ-90/30
Capacity8-15kg/h40kg/h50kg/h120kg/h250kg/h
Speed of production line1-12m/min1-10m/min10-20m/min1-8m/min1-5m/min
Quantity of mould block38 pairs38 pairs80 pairs38 pairs50 pairs





Electrical control system



Single screw extruder



Head die and mould



Mouth mould and core mould

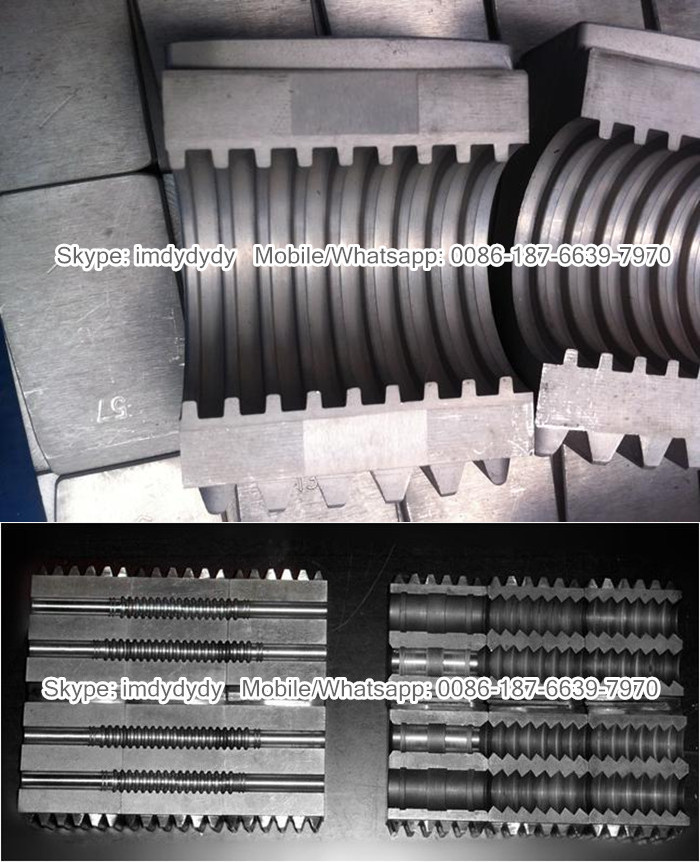

Mould block

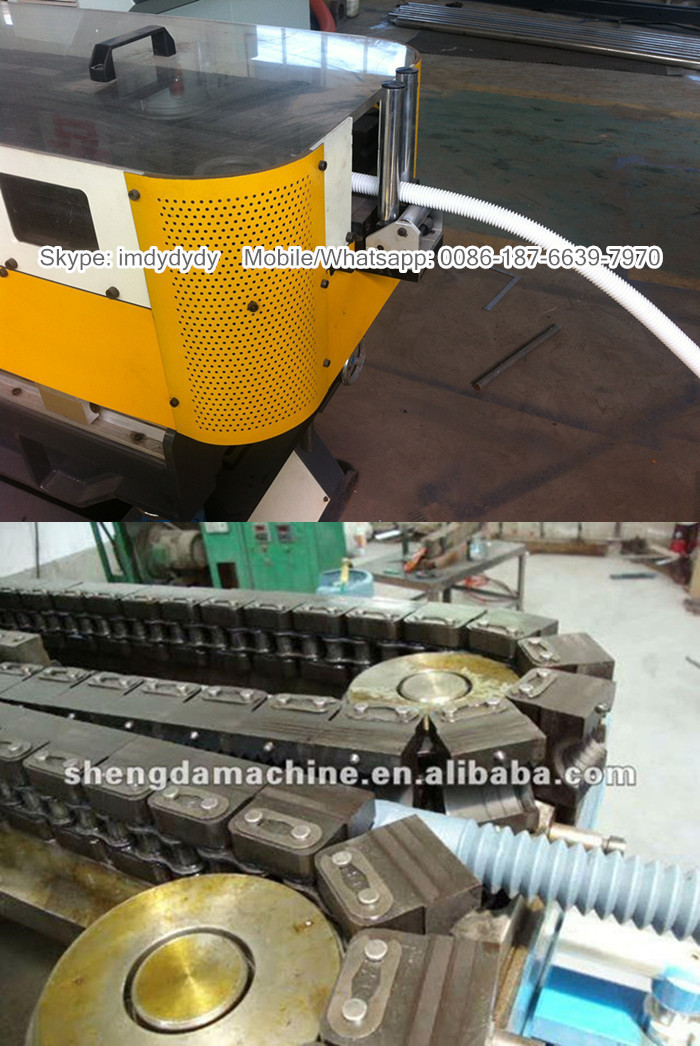

Forming machine

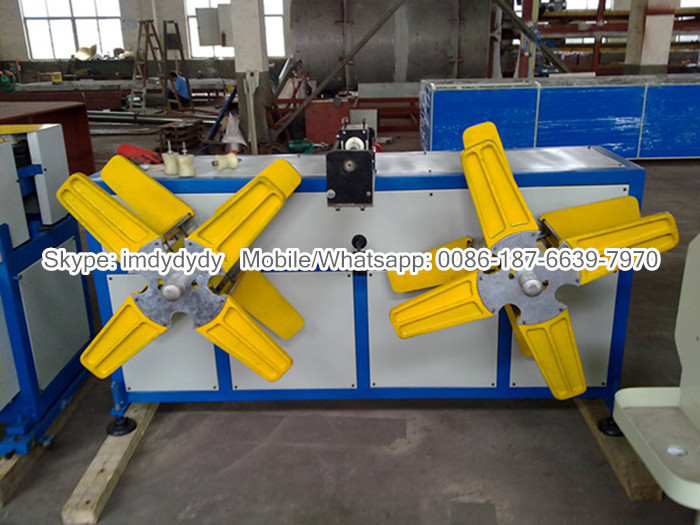

Winder

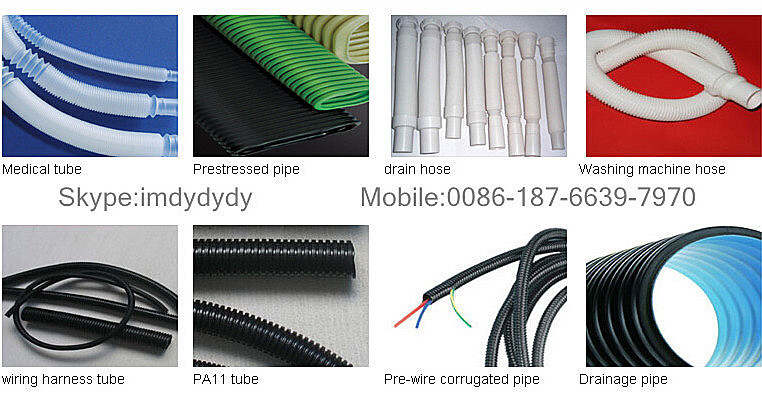

Some samples:





Our Services



We are not the best,but we are trying to do the best for you!



Our engineer will choose suitable equipment according to your finish product and it could reduce your production cost.



If you are not professional on this machine,we will tell you all prefessional knowledges through our quotation,you will become expert same as us after you analysis our quotatinon,if you are professional on this line, its our luck that you know how to choose good machine with reliable price! we share our technology and experience with you!
